RF Distribution System

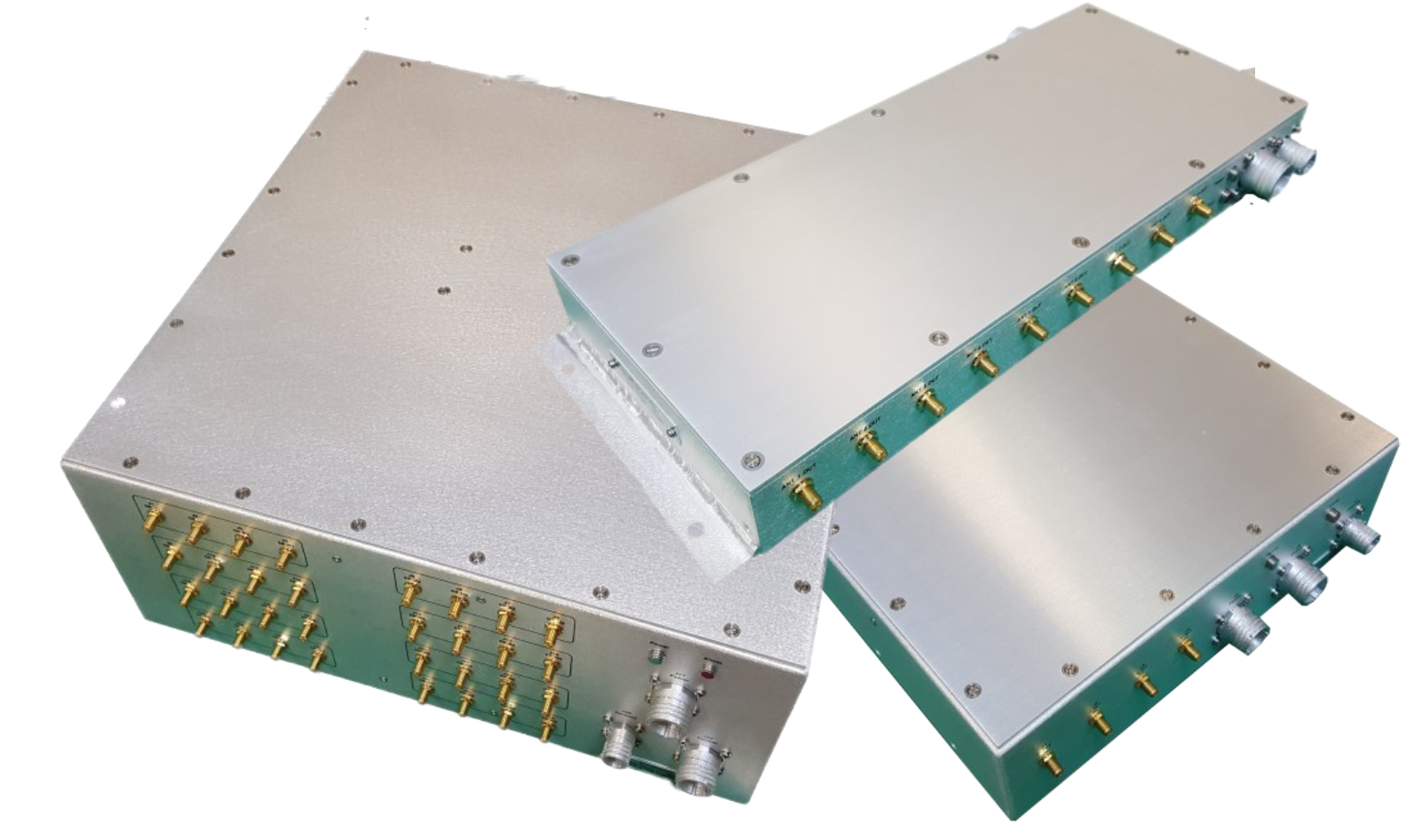

The SP-2601 is a complete modular RF distribution system that can support up to six multichannel antenna arrays and up to 56 receivers (45 DF and 11 Intercept). Frequencies from 0.5 MHz to 6.5 GHz are supported. For all bands with the exception of HF, nine element arrays are supported: eight DF elements and one Intercept element. For HF, a 10-element array is supported with the 10th element used for both DF and Intercept. The modular design of the SP-2601 allows additional frequency bands to easily be accommodated.
